The most flexible all-in-one energy storage solution on the market today
Modular for a flexible approach to energy storage
Market leading power density and efficiency
Ultra-Low installation cost/time
Solar ready - DC coupled optional
Designed for small to medium industrial and commerical
Manufactured in Great Britain
Our Flex-ESSmicro hybrid power system is a fully-factory-built and tested, high-density, modular energy solution. It offers reduced project risk and cost thanks to its simple installation, and lightweight construction. It also offers low operating costs thanks to its enclosed cooling and durable housing. Integrating KORE Power energy storage and our ground-breaking FLEX Inverter, Flex-ESSmicro achieves an industry-leading, optimising footprint for applications where space is constrained or at a premium. Working with multiple power sources and output configurations, the Flex-ESSmicro provides the ultimate, flexible approach for most applications.
System Configuration

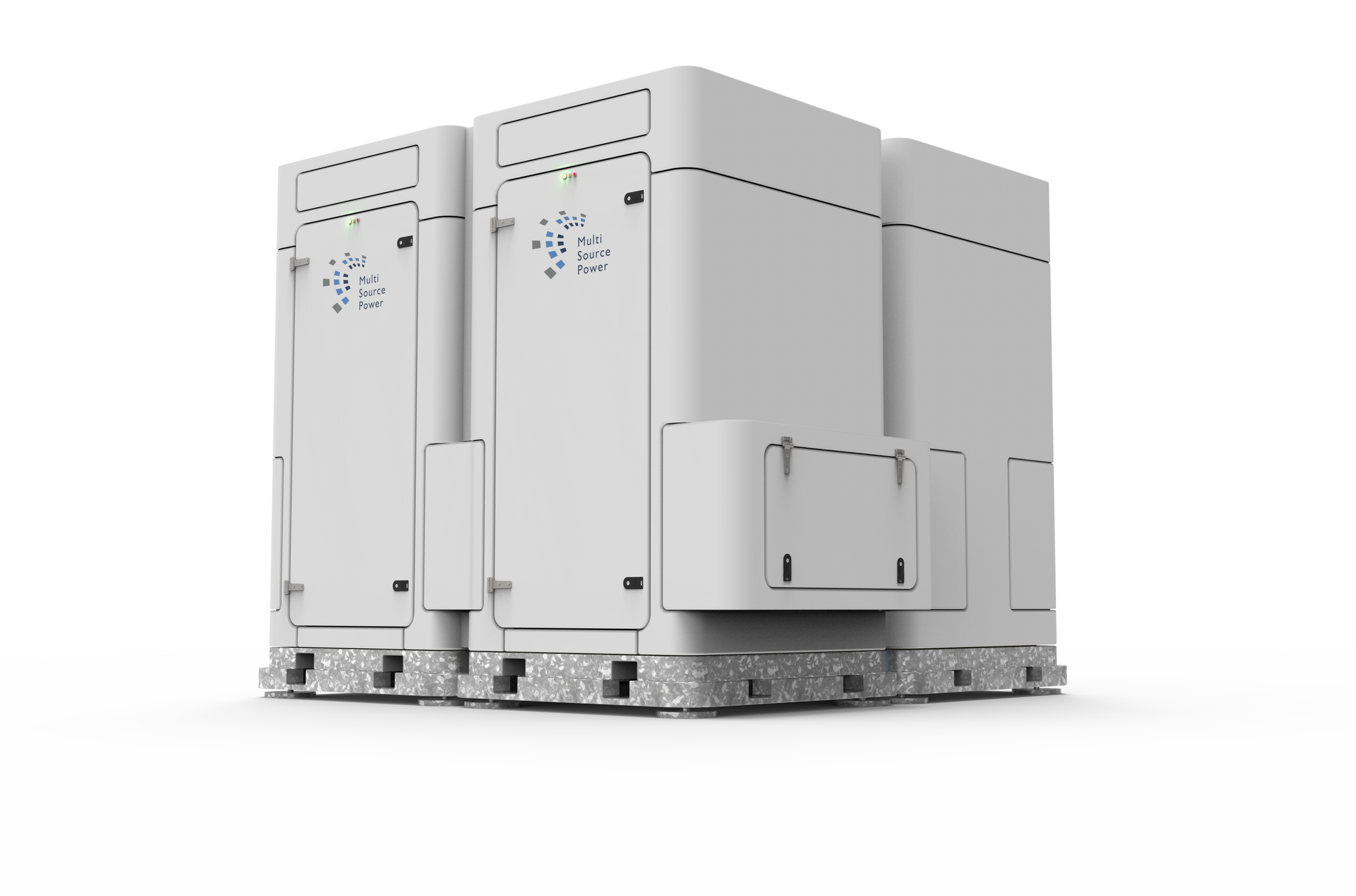

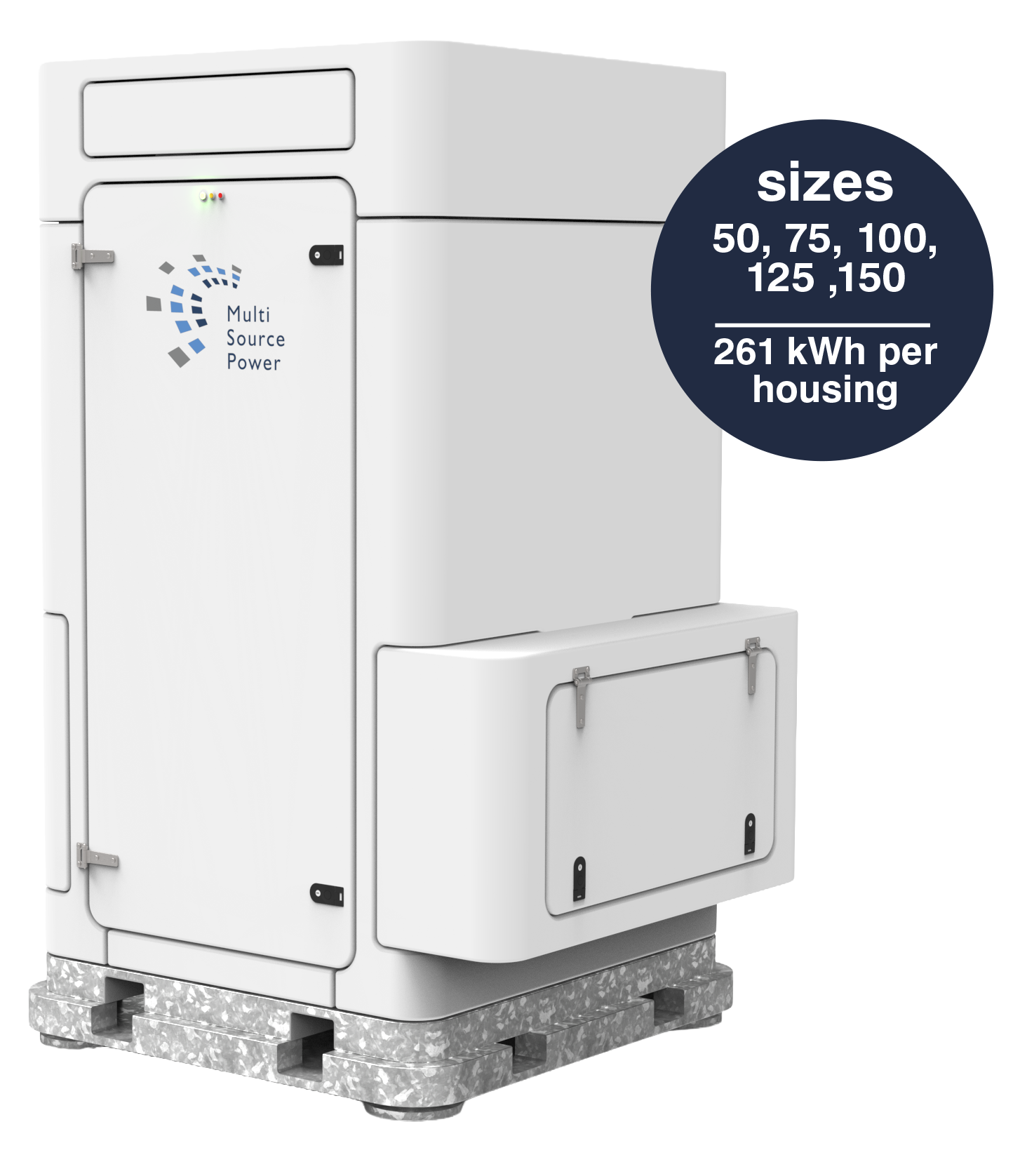

The Flex-ESSmicro system can be paralleled to multiple MW level in a highly variable range of storage and power configurations. Each GRP housing contains 50 or 100kVA of 3 phase AC Power with blocks of 71kWh of storage to a maximum of 284kWh (double stacked).
With its small footprint, multi box configurations can be arranged to preserve space in limited areas and still be planning friendly or discreet installations in any colour preference.
Flex-ESSmicro-series for low cost project overheads
Inverter
Reduced infrastructure & component costs
DC Coupled giving unrivalled flexibility when sizing your solar & storage
Outdoor housing IP64 (indoor version available)
Storage
Long lifespan with all components designed to last 5000 to 6000 cycles
British-engineered 10/15/20-year performance and 5/10/15 year product extendable warranty
Maximum safety, modules certified to UL9540A
Easily expandable, flexible energy storage system can be sized according to need
Optimised battery performance via the Master/String-Rack Controller (SRC)
Li-ion Tamer off-gas protection
BESS
Modular and expandable, the FLEX-ESSmicro offers installers a plug-and-play, factory built-and-tested, solution.
The thermally insulated and ultra durable housing ensures ideal climatic conditions for the ESS. Parasitic loads minimised by the KORE Mark 1 batteries results in class leading efficiencies.
Ultra low footprint - 2m x 2m x 1.5m (HxWxD)
Easily transported on site by forklift or Hiab
Factory built and tested
Secure and ultra-durable
Thermally optimised
Maximum energy density
Flexible layout options
Plug-and-play; delivery to commissioning hours, not days
IP 64 rated enclosure
Flex-ESSmicro transformerless system with a full spectrum of energy demands.
On Grid/Grid Services
With ultra-fast response bidirectional operation, the Flex-ESSmicro system offers power services to both industrial and commercial operators. With only the highest quality components, the system delivers outstanding uptime, minimal OPEX, and > 20 years service life, ensuring long term reliable access to those current and future revenue streams.
Peak shaving
Curtailment avoidance
Scheduled shifting
Accurate and fast ramp rate control
Remote command power and operation
24hr automated system monitoring
EV Charging
System Specification.

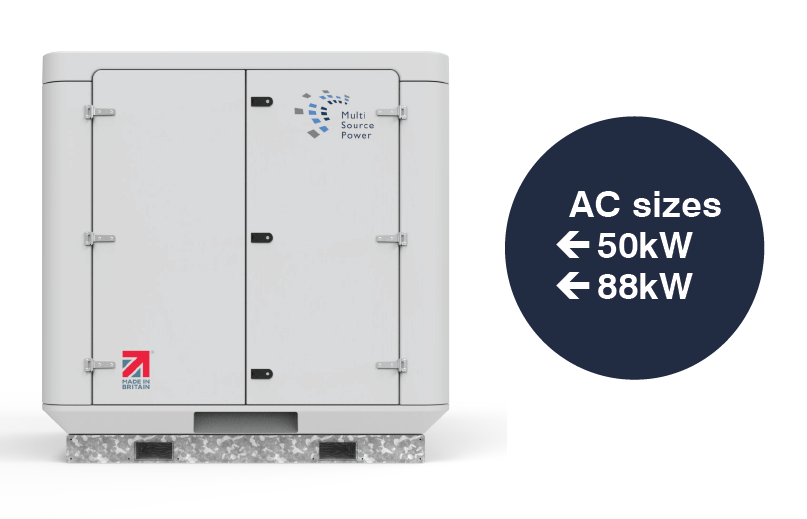

Power |
88/50 kVA |
Storage |
Max 286 kWh per housing |
Energy expansion storage |
Internally in 71.5 kWh blocks up to 286 kWh. Energy expansion boxes housing up to 1040 kWh |
AC voltage |
480 - 380 VRMS 3-phase Delta |
AC frequency |
50-60 Hz |
Communication protocol |
Modbus TCP/IP (others available) |
Ambient temperature (operation) |
-20oC to 45oC |
Shipping dimensions & weight |
Storage: 2.18m x 2.13m x 1.7m (HxWxD), 5.4 metric tons (H&W + or - 30 mm) |
Maintenance envelope (openings etc.) |
1.2m projection to front. 1.2m to sides |
Site power requirements |
None, Self-powered |
Warranty |
10/15/20 years |
Product Patent: 6107310
Get full specification information
